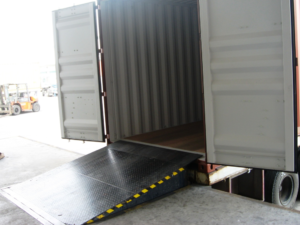

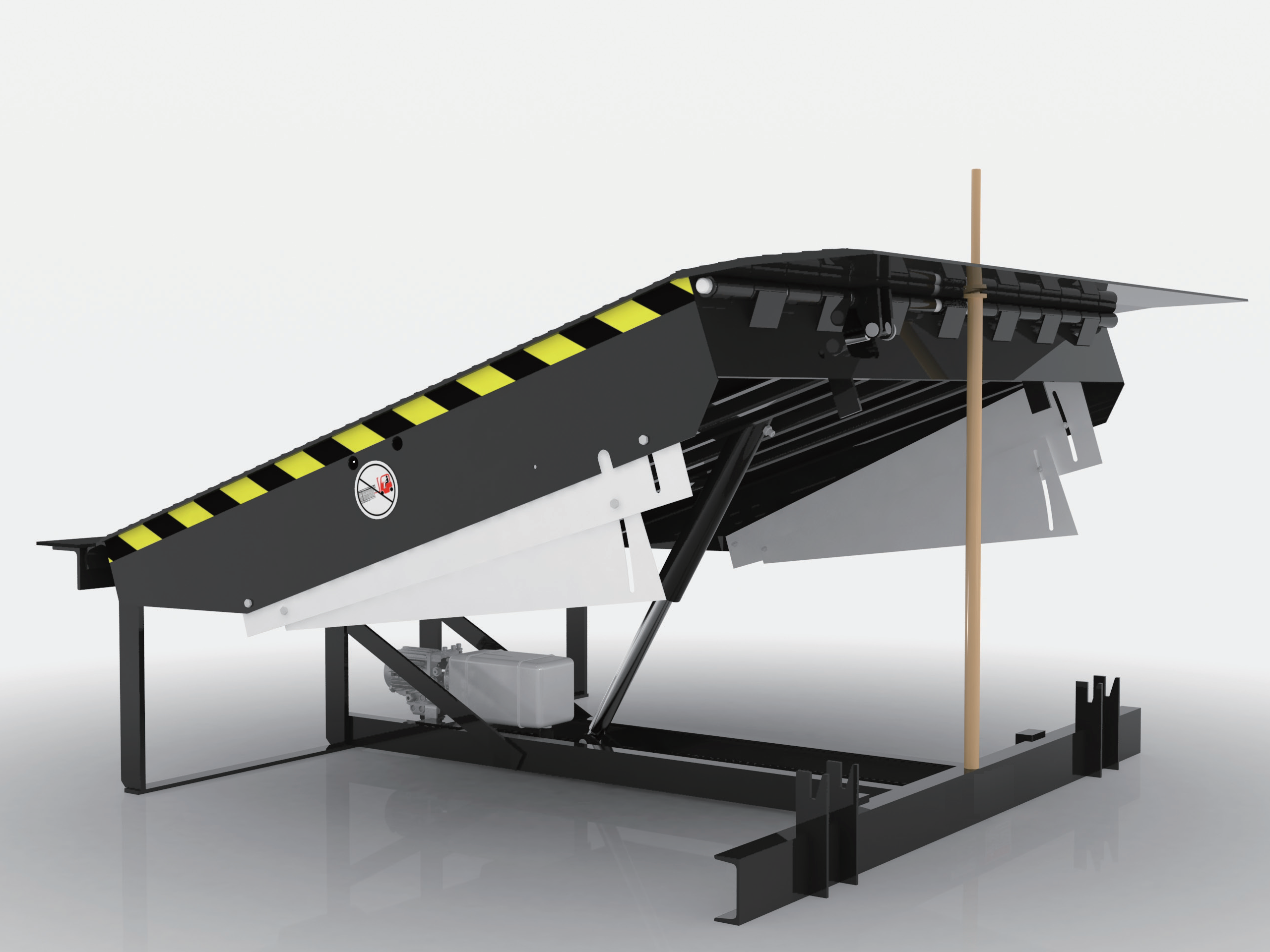

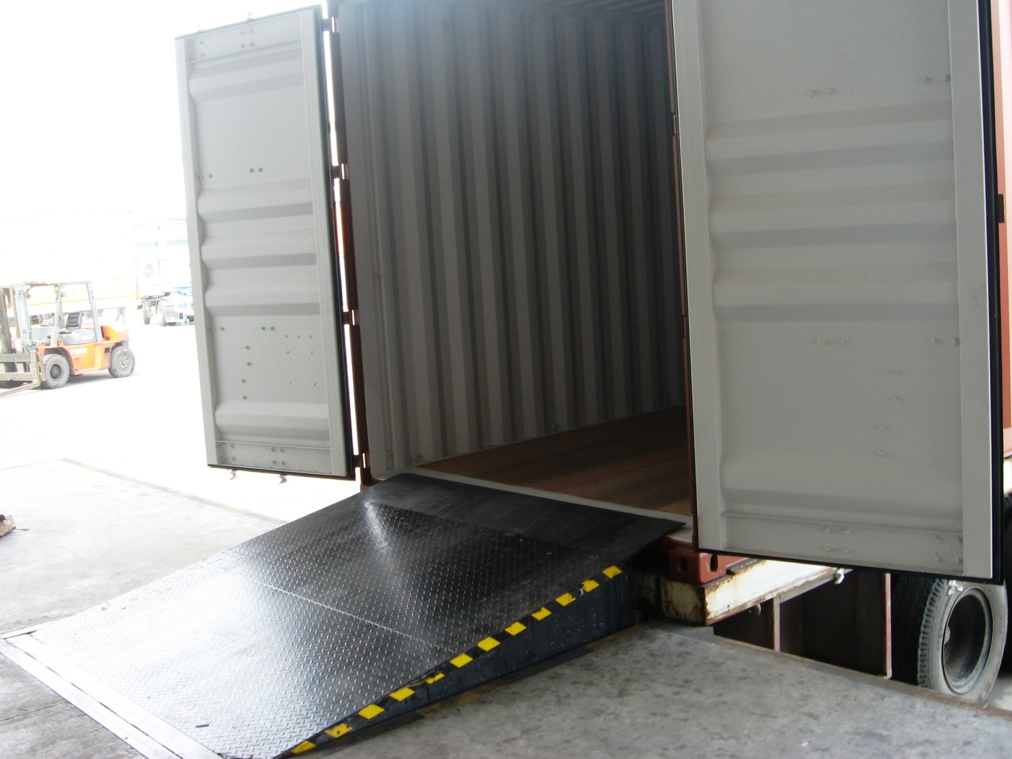

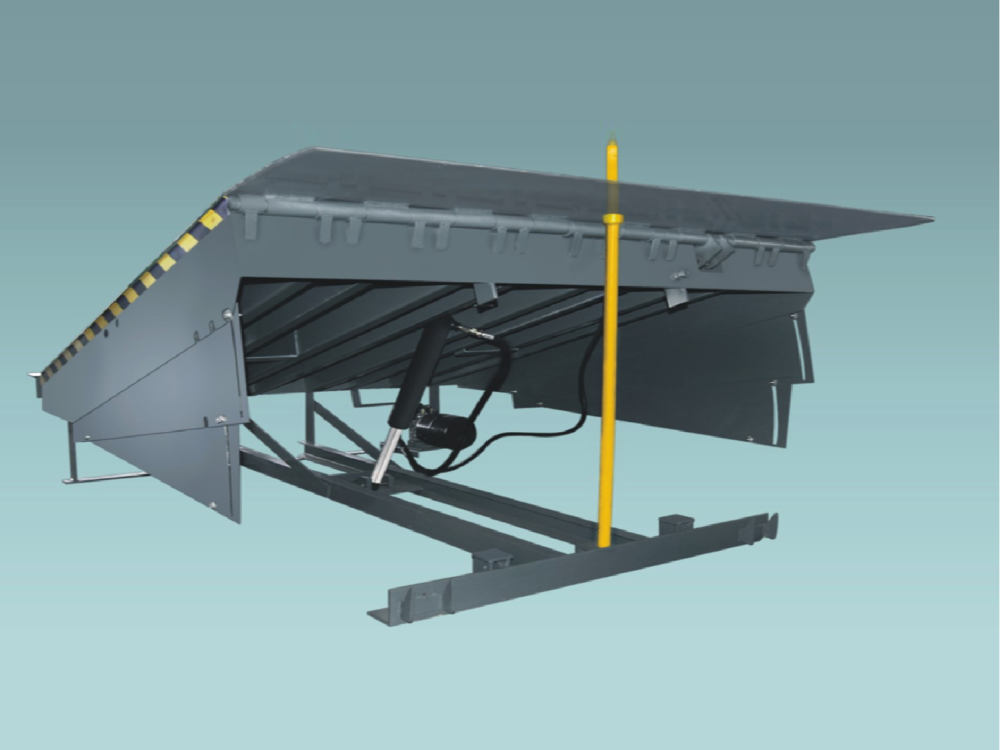

Dock- Swing dock leveler

Dynamic Load

6 ton、10 ton、15 ton

Material

Platform plate: high-strength steel plates with anti-slip patterns at a thickness of 6/8mm

Clapper: high-strength steel plate with anti-slip patterns at a thickness of 14/15 mm and a standard length of 400mm

Structure of Platform

Reinforced section steels of different structures with spacing no more than 200mm are adopted, suitable for various handling equipment and different load requirements

Surface

The coating done by electrostatic powder spraying and high temperature baking is strong in adhesion and wear resistance

Color

RAL9011 black and RAL7016 gray are standard colors, and other colors can be customized according to customer requirements

All for Safety:

• The structure of the platform is reinforced by 8-10 C-type section steel reinforcement bars to maintain elasticity of the platform and achieve optimum support.

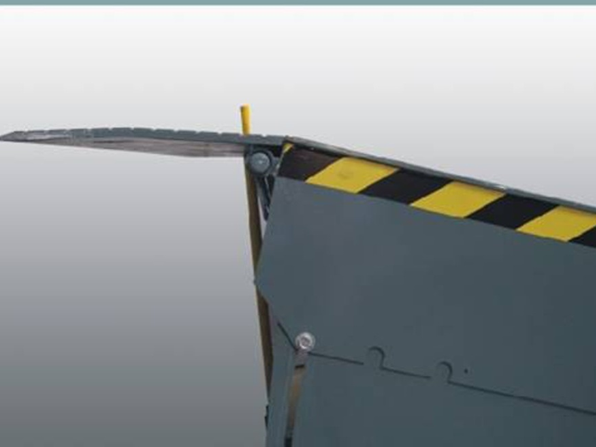

• The clapper adopts the double 5-degree arch design, which can increase the overlapping area of clapper and carriage, make the transition smoother, and avoid jolting when forklifts truck pass by
• The through-type maintenance support bar can effectively support the platform and the clapper to resist the impact from the front and side. The support point is in the middle of the clapper. The penetrating design enhances safety & anti-collision performance.
• The special inverted design of the oil cylinder can effectively prevent the oil cylinder seal ring from leakage and the safety lock valve from failing due to dust deposition.

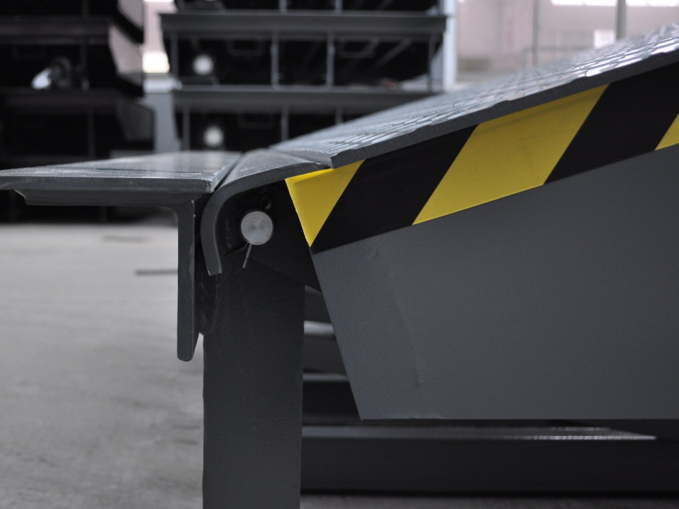

• The closed tubular hinge is designed to increase the contact area with the pin shaft so that it can bear the force more evenly. The tubular hinge can be lubricated with grease to ensure the flexible opening of the clapper.
• Foot baffle in full working range to ensure operators’ foot safety.
